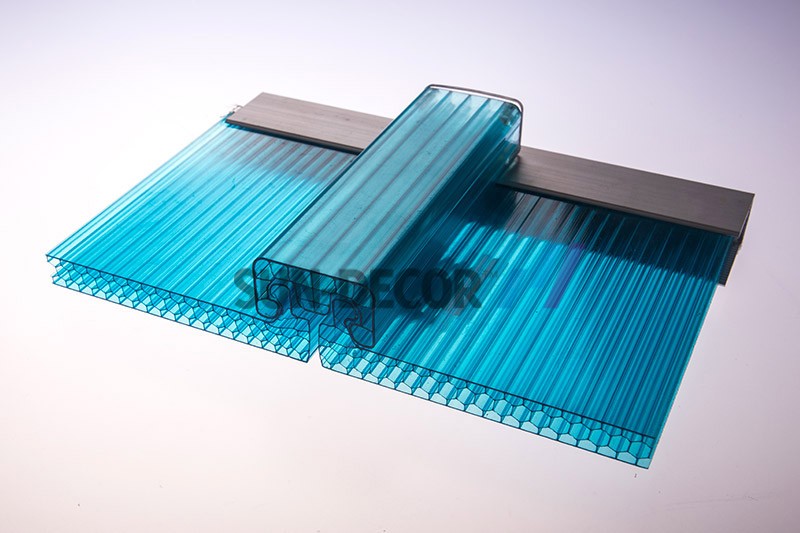

Polycarbonate u-lock sheets
SUN-DECOR locking design system is latest developed products , the system uses a free slip mountings , a fundamental solution to the ordinary polycarbonate sheets at different using temperature the thermal expansion shrinkage problem , vertical rib edge design makes the whole system to prevent the installation of combined with stronger , easier to maintain .It can develop specific color , structure , and different light transmission capabilities of the new thermal insulation to meet the needs of individual users . 80um high concentration of UV co-extruded layer to ensure that product more than 15 years of continuous use .
Application:
- Building skylights
- Indoor partition, folding screen
- Natatorium coverings
- Market building
- Architectural roofing
- Roofing and glazing of industry
- Walkways
- Carport
- Stadium roofing
Specification:
| Thickness(mm) | Structure | Width (mm) | Weight (g/sqm) | LT(%) | K value (W/㎡K) | |
|---|---|---|---|---|---|---|
| 6 | 4 layer R-structure | 600 | 1.7 | 67 | 2.63 | |
| 8 | 4 layer R-structure | 600 | 1.9 | 66 | 2.57 | |
| 10 | 4 layer R-structure | 600 | 2.2 | 65 | 2.41 | |
| 8 | 4 layer H-structure | 600 | 2.1 | 66 | 2.45 | |
| 10 | 4 layer H-structure | 600 | 2.4 | 65 | 2.16 | |
| 12 | 4 layer H-structure | 600 | 2.6 | 64 | 1.98 | |
| 14 | 6 layer D-structure | 800 | 3.1 | 52 | 1.81 | |
| 16 | 6 layer D-structure | 800 | 3.3 | 51 | 1.62 | |
| 18 | 6 layer D-structure | 800 | 3.6 | 50 | 1.53 | |
| 16 | 7 layer X-structure | 1040 | 3.6 | 51 | 1.6 | |
| 18 | 7 layer X-structure | 1040 | 3.8 | 50 | 1.51 | |
| 20 | 7 layer X-structure | 1040 | 4.0 | 50 | 1.46 | |
| 20 | 7 layer D-structure | 1040 | 4.1 | 50 | 1.18 | |
| 22 | 7 layer D-structure | 1040 | 4.3 | 49 | 1.45 | |
| 25 | 7 layer D-structure | 1040 | 4.5 | 49 | 1.39 | |
| 25 | 5 layer H2-structure | 1040 | 4.5 | 48 | 1.31 | |
| 28 | 5 layer H2-structure | 1040 | 4.8 | 47 | 1.29 | |
| 30 | 5 layer H2-structure | 1040 | 5.0 | 46 | 1.27 |
